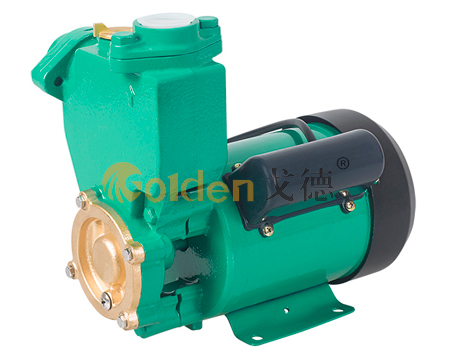

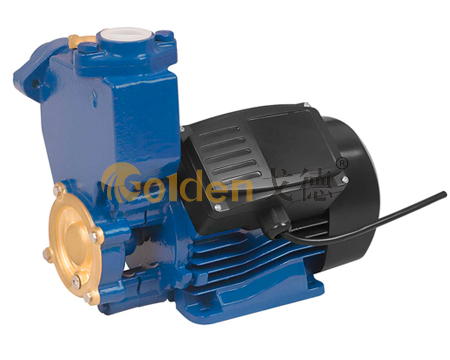

PS126 Series Self-Priming Peripheral Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
PS126 series self-sucking water pumps are new designed high efficiency house-hold electric pumps,with the motor and the pump mounted together. They are sealed with wear-resistant mechanical sealing,and carry the merits of easy to operate,light weight,high efficiency and relative low consumption of power.
PS126 series pumps have self-sucking function,which makes it better used in places that pumping clean water,and request intermission the water from each restarting of kind of working,but without refilling the pumps.- Technical Parameters
- Performance curves
DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h c H1 H2 H3 m1 m n n1 l w w1 g s NW GW L W H 20'Cont PS126-65 46 258 249 208 71 211 181 60 80 - 95 129 - 59 - 10 7.7 8.5 310 230 285 1750 PS126-75 46 258 249 208 71 211 181 60 80 - 95 129 - 59 - 10 7.7 8.5 310 230 285 1750
TECHNICAL DATA
TYPE
Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)Capacity I/min KW HP 5 10 15 20 25 30 35 40 PS126 0.37 0.5 1.4 8 32 35 1"× 1" 9 32 26 21 16 11 6 1
AUPS126 0.37 0.5 1.4 8 32 35 1"× 1" 9 32 26 21 16 11 6 1
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
