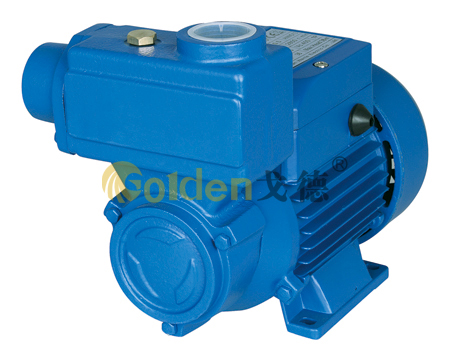

TPS Series Self-Priming Peripheral Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
With a small tank over its impeller, TPS series pumps are a good solution for self-priming. And it is also with peripheral impeller and gain high pressures relative and its curves are steep particularly.
The wide range of TPS series meets the most different operating requirements such as: Supply water from well, pool an so on .increase the water pressure in pipe, garden sprinkling or clean washing.
These pumps should be installed in a covered area, protected against the weather.
- Technical Parameters

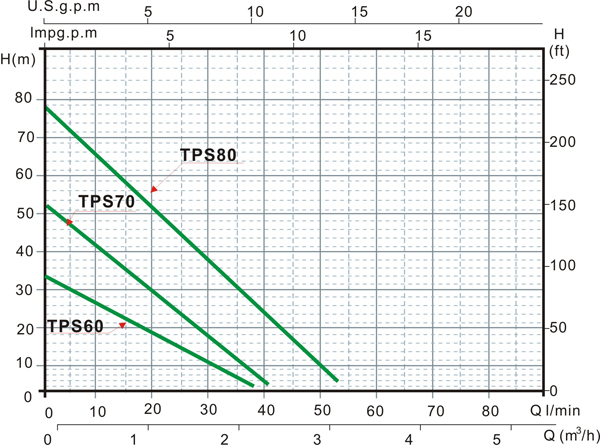

- Performance curves
- PDF Download

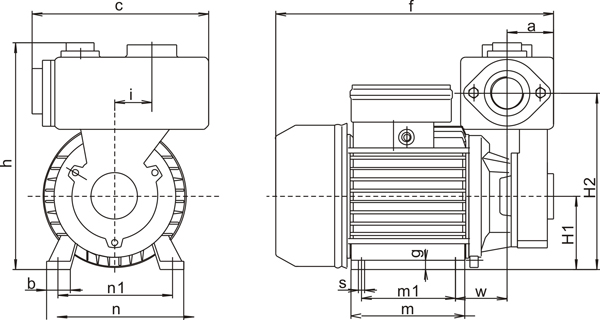

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h H1 H2 i c m m1 n n1 w b g s NW GW L W H 20'Cont TPS60 25 240 198 63 164 25 145 98 80 120 100 63 22 8 7 6.1 6.5 285 175 240 2550 TPS70 28 265 216 71 175 30 170 110 90 134 112 60 23 8 7 9.1 9.7 310 210 255 1850 TPS80 28 265 216 71 175 30 170 110 90 134 112 60 23 8 7 10.1 10.8 310 210 255 1850
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total head (m) Capacity I/min KW HP 5 10 20 30 40 50 60 70 TPS60 0.37 05 1.5 8 36 35 1"× 1" 9 32 26 16 6 - -
TPS70 0.55 0.75 2.4 12 52 40 1"× 1" 9 48 40 14 14 1 -
TPS80 1.1 1.5 4.6 20 53 53 1"× 1" 9 71 64 34 34 19 4
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
