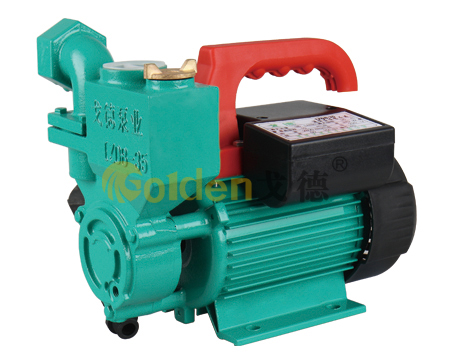

IZDB Series Self-Priming Peripheral Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
IZDB series self-sucking water pumps are new designed high efficiency house-hold electric pumps, with the motor and the pump mounted together. They are sealed with wear-resistant mechanical sealing, and carry the merits of easy to operate, light weight, high efficiency and relative low consumption of power.
IZDB Series pumps have self-sucking function, which makes it better used in places that pumping clean water, and request intermission the water from each restarting of kind of working, but without refilling the pumps.
- Main Features
- Technical Parameters

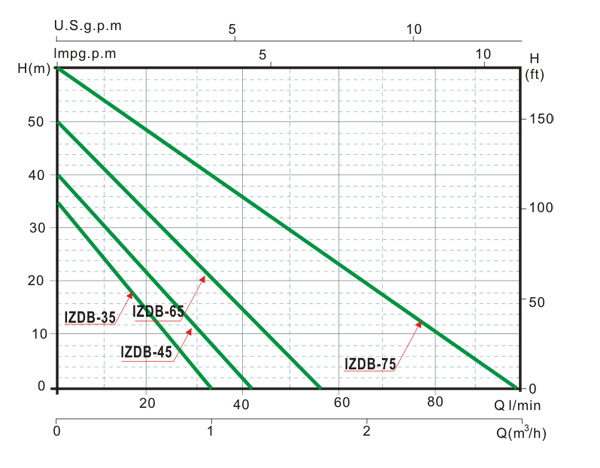

- Performance curves
- PDF Download
- CONSTRUCT
PUMP
Pump Body:Cast Iron/Cast Iron with brass insert Impeller:Brass/ Plastic with brass insert
Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR
Single Phase Heavy Duty Continuous Work Motor
Housing:Steel-plate
Shaft:Carbon Steel/Stainless Steel
Insulation:Class B/Class F
Protection:IP44/IP54
Cooling:External Ventilation
TECHNICAL DATA
TYPE Power
W-HPCurrent
(A)Capacitor
(μF)H.Max (m) Q.max
(I/min)Size
(inch)S.Head
(m)STP-65 370 2 8 35 45 25 9 STP-75 750 4 12 50 48 25 9 STP-85 1100 6 20 58 65 25 9 IZDB-35 370 2 8 35 33 25 9 IZDB-45 550 2.4 12 40 41 25 9 IZDB-65 750 3.8 20 50 57 25 9 IZDB-75 1100 4.8 25 60 99 25 9 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
