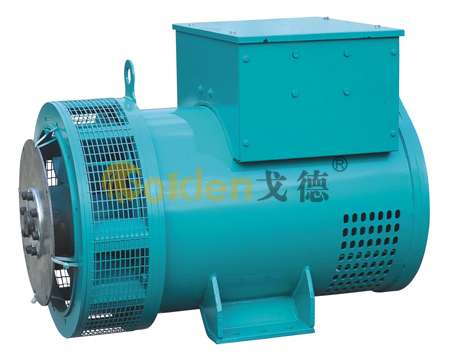

TFWL Series Brushless Three-phase A.C Sychronoud Generators
- Main Features
- Technical Parameters
- PDF Download
The voltage adjust for 110V、220V、400V、480V etc .The frequency is 50Hz/60Hz.It is adopted with brushless exciting system.
Insulation class:H; Protection class:IP22~23; Steady-state voltage regulation rate≤±1%;Transient-state voltage≤（+20%、-15%）;The line voltage waveform distortion rate≤％;
Voltage adjust range≥±10%UN: Ambient temperature≤±40℃;Altitude≤40℃;Altitude≤1000m; Air relative humidity≤90％.
TECHNICAL DATA
Model Rated Power
(KW)Rated Capacity
(KVA)Fre.
(HZ)Voltage
(V)Model Rated Power
(KW)Rated Capacity
(KVA)Fre.
(HZ)Voltage
(V)TFWL-10 10 12.5 50/60 400V TFWL-200 200 275 50/60 400V TFWL-12 12 15 50/60 400V TFWL-250 250 312.5 50/60 400V TFWL-16 16 20 50/60 400V TFWL-280 280 350 50/60 400V TFWL-20 20 25 50/60 400V TFWL-300 300 375 50/60 400V TFWL-24 24 30 50/60 400V TFWL-320 320 400 50/60 400V TFWL-30 30 37.5 50/60 400V TFWL-350 350 437.5 50/60 400V TFWL-40 40 50 50/60 400V TFWL-400 400 500 50/60 400V TFWL-50 50 62.5 50/60 400V TFWL-420 420 525 50/60 400V TFWL-64 64 80 50/60 400V TFWL-450 450 562.5 50/60 400V TFWL-75 75 93.75 50/60 400V TFWL-500 500 625 50/60 400V TFWL-90 90 112.5 50/60 400V TFWL-520 520 650 50/60 400V TFWL-100 100 125 50/60 400V TFWL-550 550 687.5 50/60 400V TFWL-120 120 150 50/60 400V TFWL-600 600 750 50/60 400V TFWL-150 150 187.5 50/60 400V TFWL-720 720 900 50/60 400V TFWL-160 160 200 50/60 400V TFWL-750 750 937.5 50/60 400V TFWL-180 180 225 50/60 400V TFWL-800 800 100 50/60 400V TFWL-200 200 250 50/60 400V TFWL-1000 1000 1250 50/60 400V Special voltege also avaible
Note:All the rating values are base on continuous duty.0.8p.f.Max .Ambient tempreture 40 degree ,Max altitude 1000m
