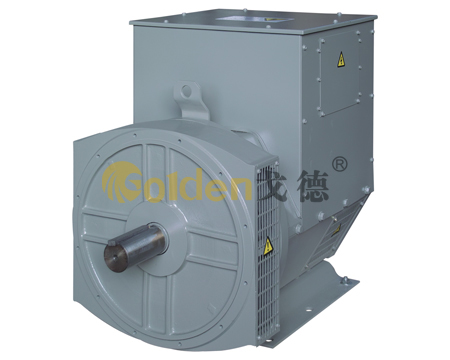

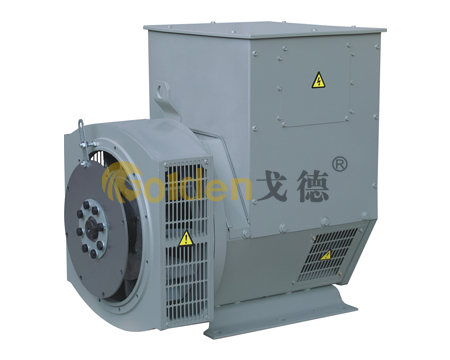

TFWS Series Brushless Three-phase A.C Sychronoud Generators
The voltage adjust for 110V、220V、400V、480V etc .The frequency is 50Hz/60Hz.It is adopted with brushless exciting system.
Insulation class:H; Protection class:IP22~23; Steady-state voltage regulation rate≤±1%;Transient-state voltage≤（+20%、-15%）;The line voltage waveform distortion rate≤5％;
Voltage adjust range≥±10%UN: Ambient temperature≤±40℃；Altitude≤40℃;Altitude≤1000m; Air relative humidity≤90％.
Insulation class:H; Protection class:IP22~23; Steady-state voltage regulation rate≤±1%;Transient-state voltage≤（+20%、-15%）;The line voltage waveform distortion rate≤5％;
Voltage adjust range≥±10%UN: Ambient temperature≤±40℃；Altitude≤40℃;Altitude≤1000m; Air relative humidity≤90％.
- Main Features
- PDF Download
TECHNICAL DATA
Model Rated Power
(KW)Rated Capacity
(KVA)Fre.
(HZ)Voltage
(V)Model Rated Power
(KW)Rated Capacity
(KVA)Fre.
(HZ)Voltage
(V)TFWS-7.5 7.5 9.375 50/60 400V YHG-128 128 160 50/60 400V TFWS-10 10 12.5 50/60 400V YHG-144 144 180 50/60 400V TFWS-12 12 15 50/60 400V YHG-150 150 187.5 50/60 400V TFWS-13 13 16.25 50/60 400V YHG-160 160 200 50/60 400V TFWS-15 15 18.75 50/60 400V YHG-180 180 225 50/60 400V TFWS-16 16 20 50/60 400V YHG-200 200 250 50/60 400V TFWS-18 18 22.5 50/60 400V YHG-240 240 300 50/60 400V TFWS-20 20 25 50/60 400V YHG-260 260 325 50/60 400V TFWS-22 22 27.5 50/60 400V YHG-280 280 350 50/60 400V TFWS-24 24 30 50/60 400V YHG-304 304 380 50/60 400V TFWS-25 25 31.25 50/60 400V YHG-320 320 400 50/60 400V TFWS-30 30 37.5 50/60 400V YHG-400 400 5000 50/60 400V TFWS-34 34 42.5 50/60 400V YHG-450 450 562 50/60 400V TFWS-40 40 50 50/60 400V YHG-500 500 625 50/60 400V TFWS-48 48 60 50/60 400V YHG-550 550 687.5 50/60 400V TFWS-58 58 72.5 50/60 400V YHG-600 600 700 50/60 400V TFWS-68 68 85 50/60 400V YHG-640 640 800 50/60 400V TFWS-80 80 100 50/60 400V YHG-728 728 910 50/60 400V TFWS-91.2 71.2 114 50/60 400V YHG-800 800 1000 50/60 400V TFWS-100 100 125 50/60 400V YHG-1000 1000 1250 50/60 400V TFWS-112 112 140 50/60 400V
Special voltege also avaible
Note:All the rating values are base on continuous duty.0.8p.f.Max .Ambient tempreture 40 degree ,Max altitude 1000m
