QWSS Series Sweage Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃

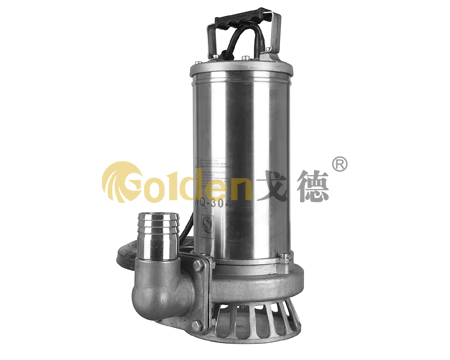

WDS stainless steel submersible sewage pump is widely accepted on the market due to its excellent performance.It can pump and drain sewage with suspended solid.and the solid size can be as large as 50mm.This product is able to empty cesspit and pool,process industrial and sanitary waste water,and it is also suitabie for the draining of sewage system.
- Technical Parameters
- PDF Download
TECHNICAL DATA
Type rated flow Rated head Power voltage Calibre weight size WQD10-10-0.75S 10 10 0.75 220 50 24.2 53X22X27 WQ15-10-0.75S 10 10 0.75 380 50 23.6 53X22X27 WQD15-10-1.1S 15 10 1.1 220 50 25.6 56.5X22X27 WQ15-10-1.1S 15 10 1.1 380 50 25.4 56.5X22X27 WQD15-12-1.5S 15 12 1.5 220 50 26 56.5X22X27 WQ15-12-1.5S 15 12 1.5 380 50 26.8 56.5X22X27 WQ15-20-2.2S 15 20 2.2 380 50 36.1 59X25X29 WQ25-15-2.2S 25 15 2.2 380 65 38.3 59X25X29 WQD40-9-2.2S 40 9 2.2 380 80 40.8 61.5X25X31 WQ50-7-2.2S 50 7 2.2 380 100 43.2 61.5X25X31 WQ15-25-3S 15 25 3 380 50 40 61.5X25X31 WQ25-20-3S 25 20 3 380 60 41.8 61.5X25X31 WQ40-15-3S 40 15 3 380 80 44.3 61.5X25X31 WQ50-10-3S 50 10 3 380 100 47 63.5X27X31 WQ15-32-4S 15 32 4 380 50 39.8 61.5X25X31 WQ25-25-4S 20 25 4 380 65 45.6 63.5X27X31 WQ40-18-4S 40 18 4 380 80 47.8 63.5X27X31 WQ50-15-4S 50 15 4 380 100 21 66X27X32 WQ20-32-5.5S 20 32 5.5 380 50 65.7 71X28X35 WQ30-25-5.5S 30 25 5.5 380 62 68.5 71X28X35 WQ50-18-5.5S 50 18 5.5 380 80 69.7 73X30X37 WQ80-10-5.5S 80 10 5.5 380 100 72.4 73X30X37 WQ100-7-5.5S 100 7 5.5 380 150 84.4 78X35X40 WQ20-40-7.5S 20 40 7.5 380 50 71 71X28X35 WQ30-32-7.5S 30 32 7.5 380 65 72.7 71X28X35 WQ40-22-7.5S 50 22 7.5 380 80 75.4 73X30X37 WQ80-15-7.5S 80 15 7.5 380 100 77.3 73X30X37 WQ100-10-7.5S 100 10 7.5 380 150 88 78X35X40
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
