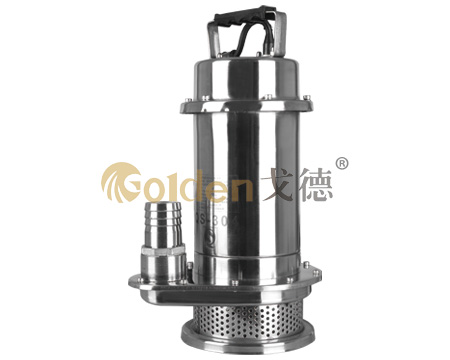

QDXSS Series Submersible Clean Water Pumps
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
Q(D)X submersible pump for clean water is scientifically designed.It is mainly applied for flowing rain water collection and pumping water from well ，rive，cellar，garage，basement，etc.It is also suitable for water supply and drainage in breeding industry.In addition, the applicable medium is clean water without abrasive particles.
- Technical Parameters
- PDF Download
RPM:n=2850r/min(50Hz)
Model Power Outlet
(lnch)Max.Flow
(m3/h)Max.Head
(m)Dim.(mm) G.W.(kg) 20"
Loading Qty
(pcs)"Single-Phase Three-Phase KW HP G(s) G(t) QDX1.5-12-0.25 - 0.25 0.37 1 4 12 365X165X173 5 - 2850 QDX1.5-17-0.37 - 0.37 0.5 1 6 17.5 370X160X203 7 - 2400 QDX1.5-25-0.55 - 0.55 0.75 1 4.5 25.5 370X105X218 10 - 1900 QDX3-18-0.55 - 0.55 0.75 1.25 7.9 19.5 370X195X213 10 - 1900 QDX10-12-0.55 - 0.55 0.75 1.5 15 18.5 370X195X213 10 - 1900 QDX15-7-0.55 - 0.55 0.75 2 22 8 370X195X238 10 - 1700 QDX1.5-32-0.75 - 0.75 1 1 6 32.5 380X220X228 12 - 1500 QDX3-24-0.75 - 0.75 1 1.25 9 25 395X195X208 12 - 1500 QDX8-18-0.75 - 0.75 1 1.5 15 20 395X195X228 11.5 - 1600 QDX10-16-0.75 - 0.75 1 2 15 20 395X195X233 11.5 - 1600 QDX15-10-0.75 - 0.75 1 2.5 36 12 395X195X253 12 - 1500 QDX25-6-0.75 - 0.75 1 3 32 9.5 400X170X258 12 - 1600 QDX3-30-1.1 QX3-30-1.1 1.1 1.5 1 9.5 30 400X220X205 13.5 12 1400 QDX15-14-1.1 QX15-14-1.1 1.1 1.5 2.5 28 17 520X240X270 16 15 1200 QDX40-6-1.1 QX40-6-1.1 1.1 1.5 3 52 10 440X280X200 18 17 1100 - QX40-9-1.5 1.5 2 3 60.5 11.2 450X280X200 - 18 1000 - QX25-12-1.5 1.5 2 2.5 42 15 425X280X200 - 17 1100
Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
