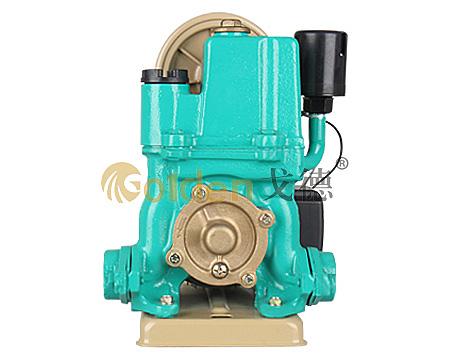

GW Series Centrifugal Pumps
When the hydraulic pressure is higher than fixed pressure,it will turn off automatically .
WORKING CONDITIONS:
Max Temperature Fluid up to +80℃
Max Pressure 10bar
Max Ambient Temperature up to 40℃
- Main Features
- Technical Parameters

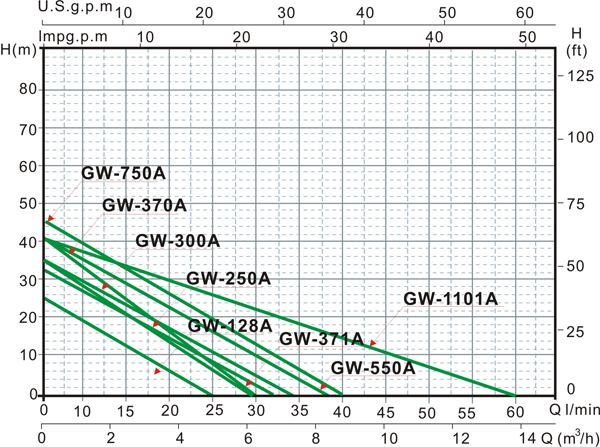

- Performance curves
- PDF Download
Main use:
* It can automatically offer water for family use when hydraulic pressure is low.*Offering water for hotels, restaurants, high buildings, water towers, boosting to offer water to solar water heaters, sucking water from wells and ponds.
* Offering circulative water to industrial equipments, garden irrigation and car washing.
TECHNICAL DATA
Model Power
(W)Voltage(V) Frequency
(HZ)Speed
(r/min)Input&Outket
(mm)H.Max
(m)Q.Max
(L/min)G.W.
(Kg)GTY
(pcs)Package Dimension
LxWxH(cm)GW-128A 125 220-240 50 2860 25 25 25 7 1 26.5x18.5x31.5 GW-250A 250 220-240 50 2860 25 25 32 10.5 1 28.5x20.5x30.5 GW-300A 300 220-240 50 2860 25 25 35 10 1 28.5x20.5x30.5 GW-370A 370 220-240 50 2860 25 25 40 12 1 30.5x27x36 GW-371A 370 220-240 50 2860 25 25 35 12.5 1 29x25.8x33.5 GW-550A 550 220-240 50 2860 25 25 40 19 1 32.5x29x36.5 GW-750A 750 220-240 50 2860 25 25 45 20 1 32.5x29x36.5 GW-1100A 1100 220-240 50 2860 25 25 40 23 1 44x33x46 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with motor protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
