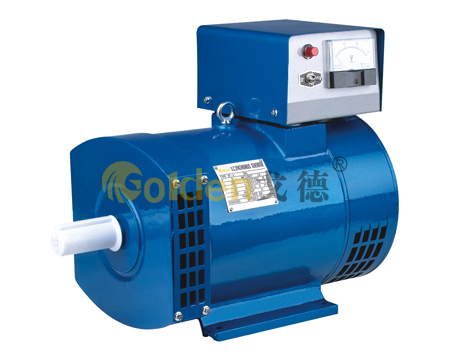

ST Series Single-Phase Or Three-phase A.C.Sychronoud Alternator
ST series generator is mainly for the country or the family electricity and small town boats, lighting design of a generator.
This generator structure to drop, salient pole, self-excitation constant structure generator used high quality of internal XiGangPian and other electrical insulation materials for class B stator level in this series with generator appearance, reasonable structure, easy maintenance, etc. In the shape and size of the rear by IEC standard, can apply for type B structure in Australia, Europe, America and other countries and regions.
Use:
In the following conditions can be properly allots motor and output power rating.
Height: no more than 1000m
Cooling temperature: 258 ~ ~ ~ 313K (- 15 degrees 40 ° c),
Relative humidity: no more than 90%
This generator structure to drop, salient pole, self-excitation constant structure generator used high quality of internal XiGangPian and other electrical insulation materials for class B stator level in this series with generator appearance, reasonable structure, easy maintenance, etc. In the shape and size of the rear by IEC standard, can apply for type B structure in Australia, Europe, America and other countries and regions.
Use:
In the following conditions can be properly allots motor and output power rating.
Height: no more than 1000m
Cooling temperature: 258 ~ ~ ~ 313K (- 15 degrees 40 ° c),
Relative humidity: no more than 90%
- Technical Parameters
- PDF Download
Moder Output
(KW)Current(A) Voltage(V) Pole number Power Factor Speed
(r.p.m.)Series
ConnectionParallel
ConnectionSeries
ConnectionParallel
ConnectionST-2 2 8.7 17.4 230 115 4 1.0 1500 ST-3 3 13 26 ST-5 5 21.8 54.5 ST-7.5 7.5 32.6 65.2 ST-10 10 43.5 87 ST-12 12 52.2 104.4 ST-15 15 65.3 130.4 ST-20 20 87 174

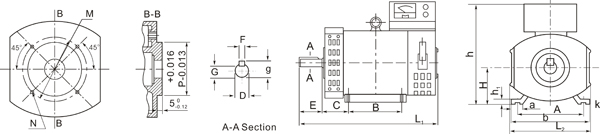

TYPE Installing dimensions External dimensions Weight
(kg)A B C D E F G H K M N P a b h1 h L1 L2 g 20'Cont ST-2 216 178 89 32 80 10 27 132 12 - - - 34 250 18 385 480 270 35 65 ST-3 216 178 89 32 80 10 27 132 12 - - - 34 250 18 385 480 270 35 70 ST-5 254 254 108 38 80 10 33 160 15 - - - 50 310 25 440 580 325 41 120 ST-7.5 254 254 108 38 80 10 33 160 15 - - - 50 310 25 440 580 325 41 130 ST-10 279 203 121 42 110 12 37 180 15 265 4-M12 230 60 339 25 440 610 365 45 140 ST-12 279 203 121 42 110 12 37 180 15 265 4-M12 230 60 339 25 440 610 365 45 155 ST-15 318 228 133 48 110 14 42.5 200 19 300 4-M16 250 60 378 30 540 660 400 51.5 192 ST-20 318 228 133 48 110 14 42.5 200 19 300 4-M16 250 60 378 30 540 660 400 51.5 200
