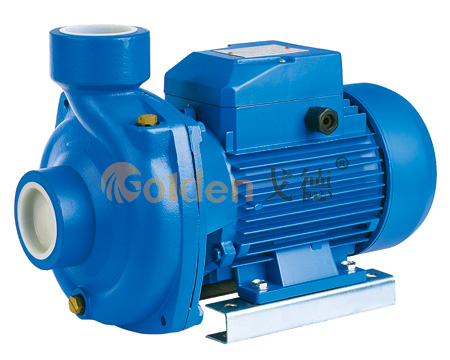

DTM Series Centrifugal Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
DTM pump are specifically designed for industrial and agricultural use. Its voluted impeller make it able to pump water that is even fairly dirty. High delivery rates under continuous or heavy duty, making them advantageous for rain and gravity irrigation, for pumping water from lakes, river, wells and for a wide variety of industrial uses where high delivery rates must be achieved at low to average heads. With a single centrifugal impeller cantilevered on the motor shaft directly, the DTM pump have a compact size, extremely reliable, very simple to use and almost maintenance-free,.
- Technical Parameters

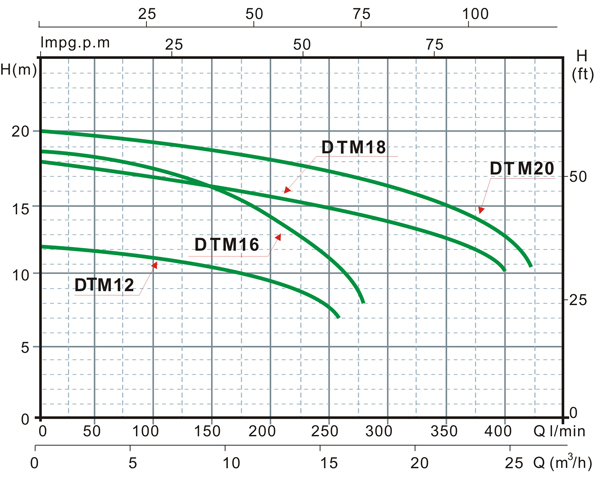

- Performance curves
- PDF Download

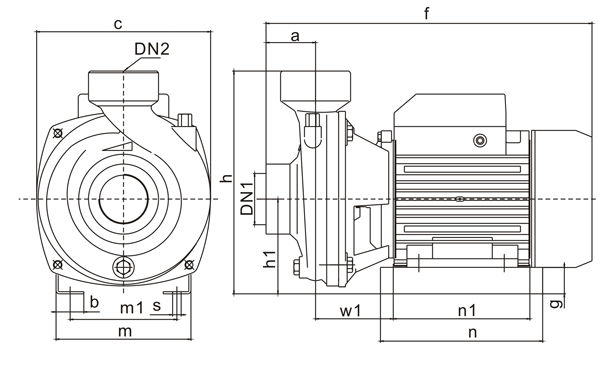

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYa
f h c h1 w m m1 n n1 b g s NW GW L W H 20'Cont DTM12 43.5 317 241 192 92 78 138 110 170 138 28 28 10 12.5 13.5 340 210 225 1400 DTM16 43.5 317 241 192 92 78 138 110 170 138 28 28 10 13 14 340 210 225 1400 DTM18 58 382 261 204 111 91 158 125 190 160 33 30 10 20.5 21.5 395 225 285 800 DTM20 58 382 261 204 111 91 158 125 190 160 33 30 10 22 23 395 225 285 800
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 100 150 200 250 300 400 DTM12 0.55 0.75 3.8 16 12 260 1.5"× 1.5" 8 11 8 2
DTM16 0.75 1 4.8 20 18.5 280 1.5"× 1.5" 8 18 16 10
DTM18 1.1 1.5 6.6 30 18 400 2"× 2" 8 17 17 17 16.5 16 14 DTM20 1.5 2 8.8 40 20 420 2"× 2" 8 21 20 19 19 18 17 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
