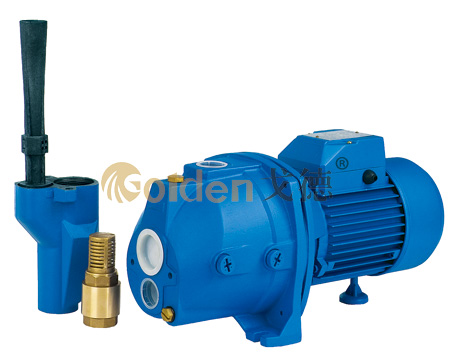

JDW Self-priming Deep Well Pump
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
JDW self-priming deep-well pumps consist of an ejector unit and a centrifugal pump connected in series. The ejector unit can be lowered in a 4" diameter pipe of well. These pumps are suitable to convey clean water or non-aggressive chemical fluids; they are extremely reliable and simple to use and are suitable for domestic applications, for automatic distribution of water from small to medium size surge tanks and for boosting systems. In order to grant a correct counter-pressure, it is always advisable to install a foot valve with a strainer on the suction nozzle
- Technical Parameters
- PDF Download

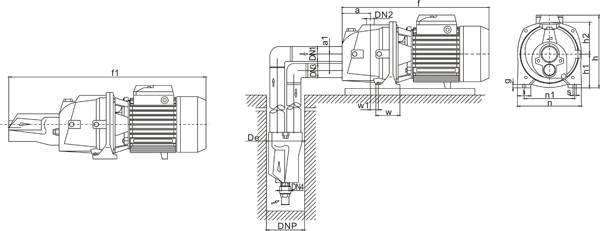

DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing
QTYDNP DN1 DN2 DN3 De a a1 a2 f f1 h h1 h2 n n1 w w1 b g s NW GW L W H 20'Cont JDW255A 4" 1.25" 1" 1" 96 75 46 148 374 522 206 97 87 190 149 45 24 40 11 10 16 17.2 435 300 230 850 JDW355A 4" 1.25" 1" 1" 96 75 46 148 374 522 206 97 87 190 149 45 24 40 11 10 17.5 18.8 435 300 230 850
TECHNICAL DATA
TYPE Power Current
(A)Size
DN1XDN2XDN3Capacitor
(mF)Total Head
(m)Enjector Type Sect. H
(m)Capacity l/min At discharge head m KW HP 10 15 25 35 JDW255A 0.8 1.1 2.3 1.25"X1"X1" 16 35 E20 10 30 24 9 - 40 E20 15 26 20 5 - 45 E30 20 22 16 9 2 JDW355A 1 1.4 3.5 1.25"X1"X1" 20 45 E20 10 - 32 18 8 50 E20 15 - 28 14 4 55 E30 20 - 24 16 10 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
