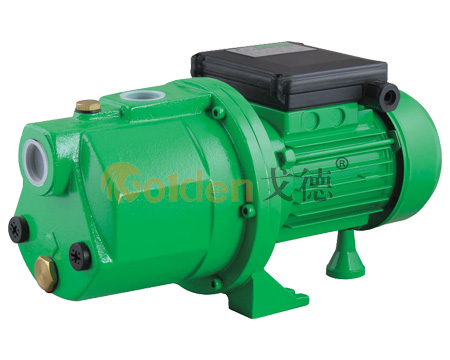

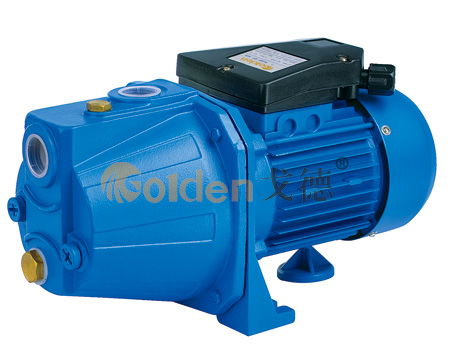

JET Series Self-Priming JET Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
JET series are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and increasing of water pressure.
- Technical Parameters

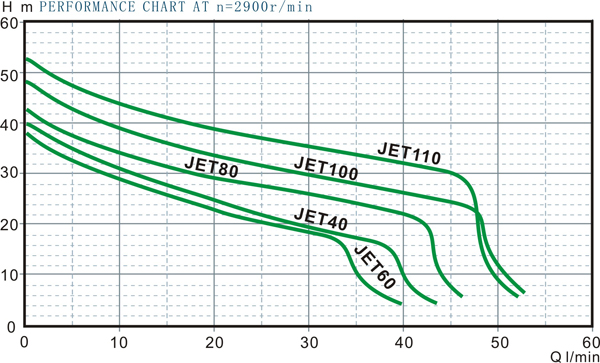

- Performance curves
- PDF Download
DIMENSIONS
TYPE Dimensions mm Weight
(kg)Packing Size
(mm)Packing QTY.
20'Conta
f h H1 H2 W1 W2 n n1 g s NW GW L W H JET-40A 94 360 178 90 130 89 60 142 96 7 8 8.7 9.5 410 210 220 1500 JET-60 90 380 196 98 152 79 55 182 142 9 11 11.8 12.6 410 210 220 1300 JET-80 90 380 196 98 152 79 55 182 142 9 11 12.5 13.5 410 210 220 1300 JET-100 90 380 196 98 152 79 55 182 142 9 11 13.1 14.1 410 210 220 1300 JET-110 90 380 196 98 152 79 55 182 142 9 11 13.8 14.8 410 210 220 1300
TECHNICAL DATA
TYPE Power Current
(A)Capacitor
(μF)H.max
(m)Q.max
(I/min)Size
(inch)S.Head
(m)Total
head
(m)
Capacity I/min KW HP 5 10 20 30 40 50 JET-40A 0.33 0.45 2.1 12 35 45 1"× 1" 9 35 31 24 19.5 10
JET-60 0.37 0.50 3.2 12 38 42 1"× 1" 8 35 29 23 18
JET-80 0.55 0.75 3.8 16 45 46 1"× 1" 8 38 34 29 26 22
JET-100 0.57 1 5 20 50 52 1"× 1" 8 44 39 34 30 26.7 9 JET-110 1.1 1.5 4.9 20 53 52 1"× 1" 8 47 44 39 36 33 12 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
