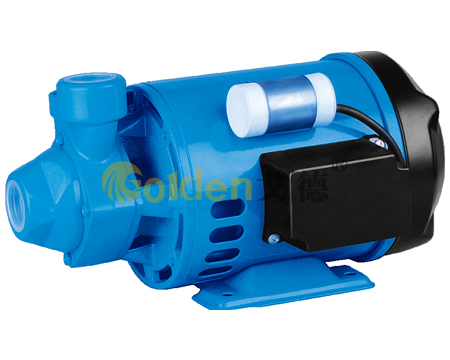

PM16 Series Peripheral Pumps
WORKING CONDITIONS
Max Temperature of Fluid up to +80℃
Max Pressure 10bar,
Max Ambient Temperature up to 40℃
- Main Features
- Technical Parameters

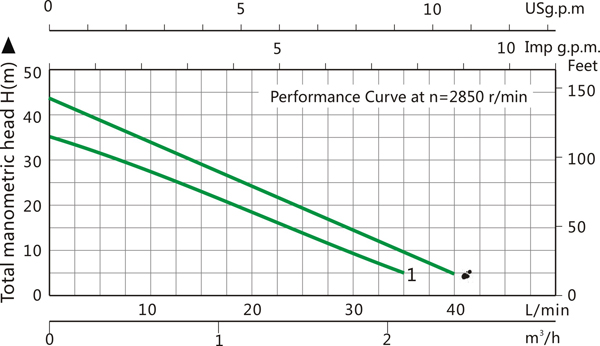

- Performance curves
- PDF Download
PUMP
.Pump Body:Cast Iron
.Impeller:Brass
.Mechanical Seal:Carbon/Ceramic/Stainless Steel
MOTOR
.Single Phase
.Insulation:Class B/ Class f
.Heavy Duty Continuous Work
.Protection:IP44/IP54
.Motor Housing:Steel-plate
.cooling:External Ventilation
.Shaft:Carbon Steel/Stainless Steel

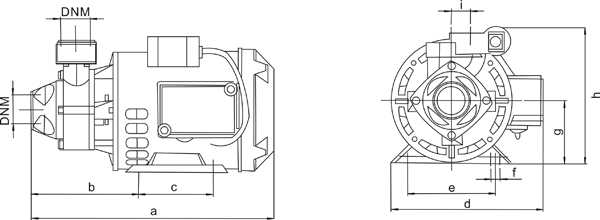

DIMENSIONS
Moder DIMENSIONS(mm) PACKAGE DIMENSIONS&G.W. DNA DNM a b c d e f g h i k l m A B H kg
Inch mm Inch mm CP-130
(PM-16)1" 25 1" 25 277 118 72 150 47.5 178 139 112 8 20 18 90 287 185 157 7.0
TECHNICAL DATA
TYPE Input Max Power Current Q.max H.max Suct.Max Single Phase KW KW HP A (I/min) (m) (m) CP-130 0.33 0.18 0.25 1.6 35 35 9 PM16 0.50 0.30 0.40 2.2 40 43 9 Standard data and equipment: single phase 220V/50Hz, Brass impeller, carbon steel motor shaft, with terminal protector inside.
Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.
